Land Component

PreviousVault ComponentNextRoll Component

Last updated 1 year ago

Overview

This component is used to distance-match landing animations with the ground point. Make sure to add it to your character:

Unlike other components, this one does not use a Data Asset, so you can configure everything directly in the component.

  • Hard Landing: Motion Warping Asset for high vertical velocity landing.

  • Soft Landing: Motion Warping Asset for low vertical velocity landing.

  • Hard Landing Height: defines max allowed height.

  • Soft Landing Height: if character's vertical height is greater than this value, Hard Landing animation will be used.

  • Min Allowed Height: minimum allowed height.

  • Capsule Radius: capsule trace radius.

  • Forward Offset: defines the forward offset upon landing.

  • Layer Mask: collision mask.

How does it work?

This component will use a raycast to check if there's a possible ground to land. Then the interaction will start.

Motion Warping Asset Requirements

Use a single Warp Phase:

🔌

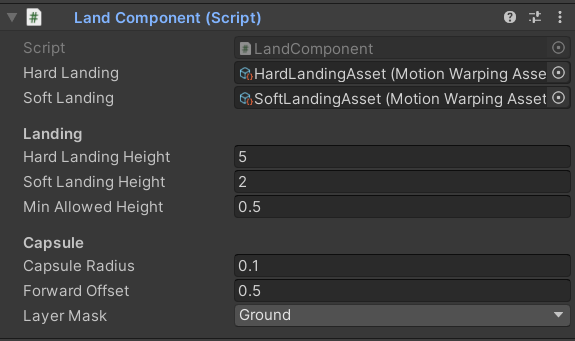

Land Component Inspector.
